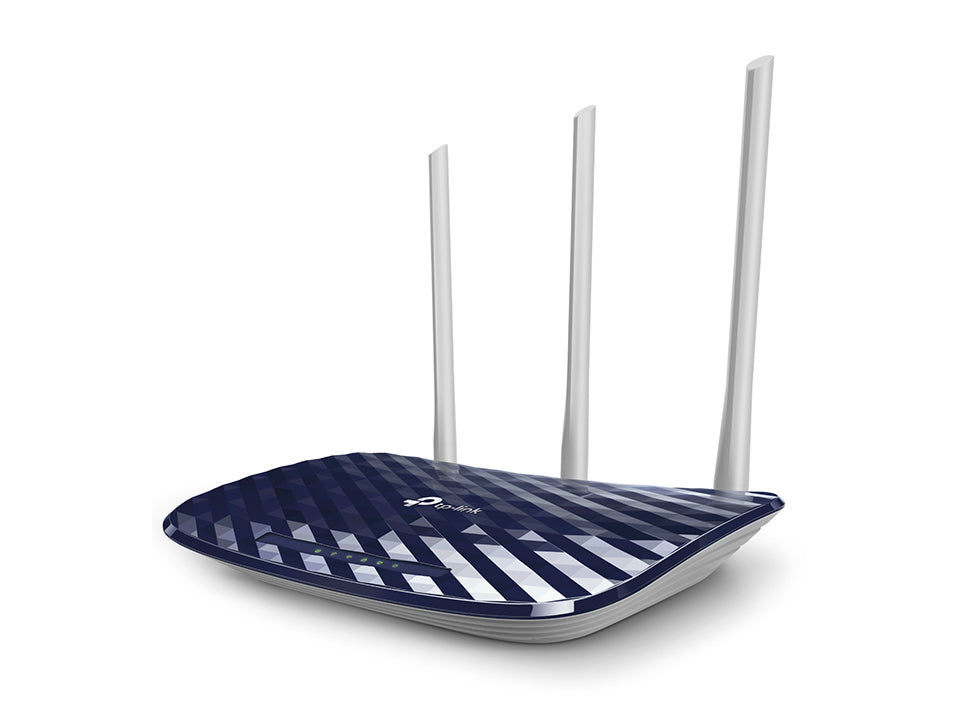

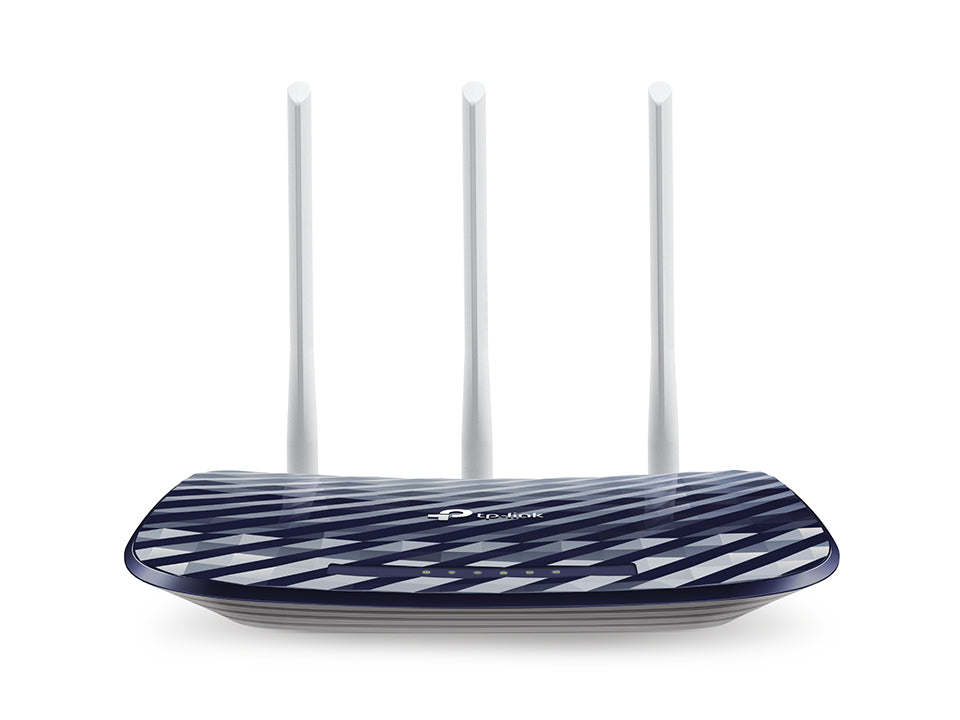

TP-Link Archer C20 AC750 Dual Band Router - 733 Mbps / WAN / LAN
Contact For Price
Share your details and we will get back to you with the best available price.



























Share your details and we will get back to you with the best available price.
With 433 Mbps wireless speed over the 5GHz band and 300 Mbps over the 2.4GHz band, Archer C20 offers you the flexibility of two dedicated networks and ensures amazing wireless performance. Simple tasks such as sending e-mails or web browsing can be handled by the 2.4GHz band while bandwidth intensive tasks like online gaming or HD video streaming can be processed by the 5GHz band - all at the same time.
AC750 Wireless Dual Band Router
High-Speed Wi-Fi: Simultaneous 300 Mbps at 2.4 GHz and 433 Mbps at 5 GHz for 733 Mbps total available bandwidth.?
Far-Reaching Coverage: Three external antennas provide stable omnidirectional signal and superior wireless coverage.
Multi-Mode 3 in 1: Supports Router, Access Point, and Range Extender to add flexibilities.
WPA3 Security: Brings new capabilities to improve cybersecurity in personal networks.?
IPTV Support: IPTV supports IGMP Proxy/Snooping, Bridge and Tag VLAN to optimize HD streaming.
Parental Controls: Manages when and how connected devices can access the internet.
Guest Network: Provides separate access for guests while securing the host network.
Key Features
Device Type : Wireless Router
Connectivity Technology : Wireless, Wired
Data Transfer Rate : 733 Mbps
Interface : WAN, LAN
Simultaneous 2.4GHz 300Mbps & 5GHz 433Mbps connections
3 external antennas provide stable omnidirectional signal
| Standards and Protocols |
Wi-Fi 5 IEEE 802.11ac/n/a 5 GHz IEEE 802.11n/b/g 2.4 GHz |
|---|---|
| WiFi Speeds |
AC750 5 GHz: 433 Mbps (802.11ac) 2.4 GHz: 300 Mbps (802.11n) |
| WiFi Range |
2 Bedroom Houses 3× Fixed Antennas Multiple antennas form a signal-boosting array to cover more directions and large areas |
| WiFi Capacity |
Medium Dual-Band Allocate devices to different bands for optimal performance |
| Working Modes | Router Mode Access Point Mode Range Extender Mode |
| Network Security | SPI Firewall Access Control IP & MAC Binding Application Layer Gateway |
|---|---|
| Guest Network | 1× 5 GHz Guest Network 1× 2.4 GHz Guest Network |
| WiFi Encryption | WEP WPA WPA2 WPA/WPA2-Enterprise (802.1x) |
| Processor | Single-Core CPU |
|---|---|

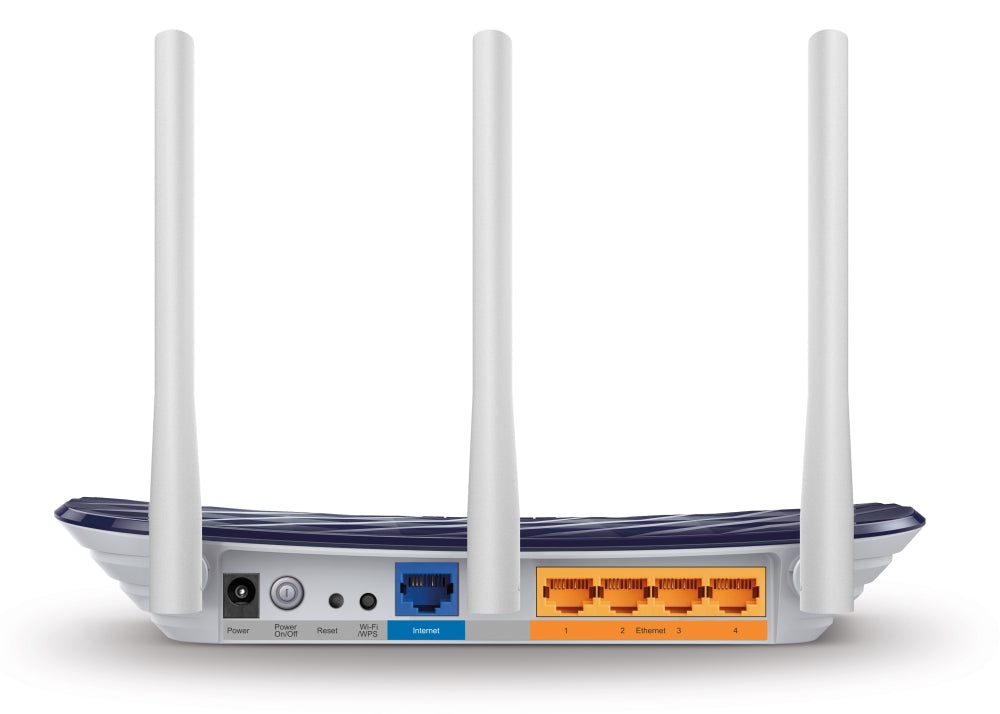

| Ethernet Ports | 1× 10/100 Mbps WAN Port 4× 10/100 Mbps LAN Ports |
| Buttons | WPS/Wi-Fi Button Power On/Off Button Reset Button |
| Power | 9 V ⎓ 0.6 A |
| Protocols | IPv4 IPv6 |
|---|---|
| Parental Controls | URL Filtering Time Controls |
| WAN Types | Dynamic IP Static IP PPPoE PPTP L2TP |
| Quality of Service | QoS by Device |
| NAT Forwarding | Virtual Server Port Forwarding Port Triggering DMZ UPnP |
| IPTV | IGMP Proxy IGMP Snooping |
| DHCP | Address Reservation DHCP Client List Server |
| DDNS | NO-IP Comex DynDNS |
| Management Features | Tether App Webpage Check Web Emulator> |
| System Requirements | Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser Cable or DSL Modem (if needed) Subscription with an internet service provider (for internet access) |
|---|---|
| Certifications | FCC, CE, RoHS |
| Environment | Operating Temperature: 0℃~40℃ (32℉ ~104℉) Storage Temperature: -40℃~70℃ (-40℉ ~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
| WiFi Transmission Power | CE: <20dBm(2.4GHz) <23dBm(5GHz) |
|---|---|
| WiFi Reception Sensitivity | 5GHz: 11a 54M: -76dBm; 11ac VHT20 MCS8: -71dBm; 11ac VHT40 MCS9: -66dBm; 11ac VHT80 MCS9: -62dBm 2.4GHz: 11g 54M: -76dBm11n; HT20 MCS7: -73dBm; 11n HT40 MCS7: -71dBm |
| Dimensions (W×D×H) | 9.1 × 5.7 × 1.4 in (230 × 144 × 35 mm) |
|---|---|
| Package Content | Wi-Fi Router Archer C20 Power Adapter RJ45 Ethernet Cable Quick Installation Guide |
