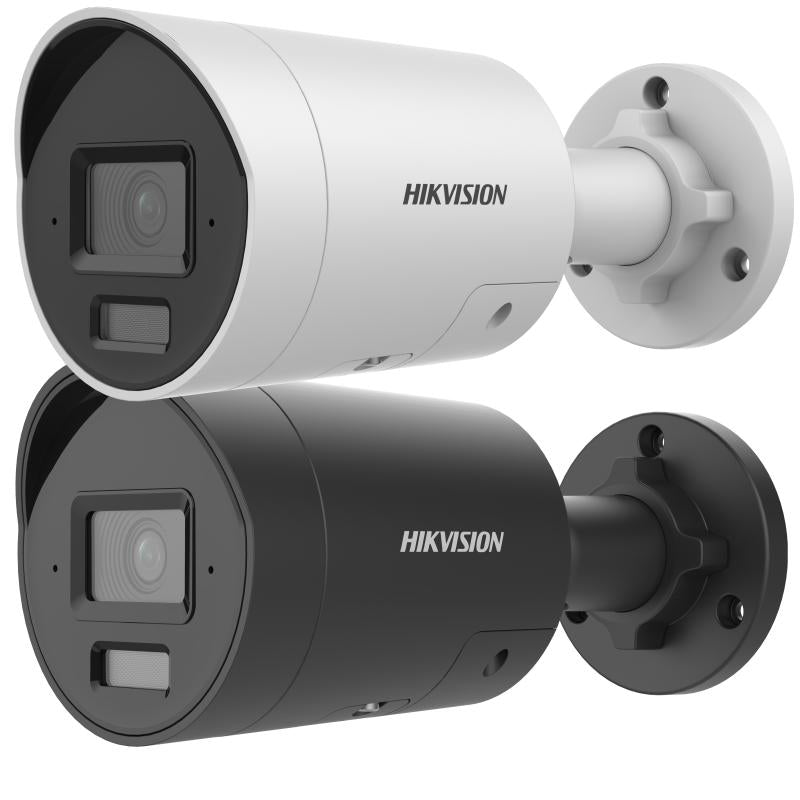

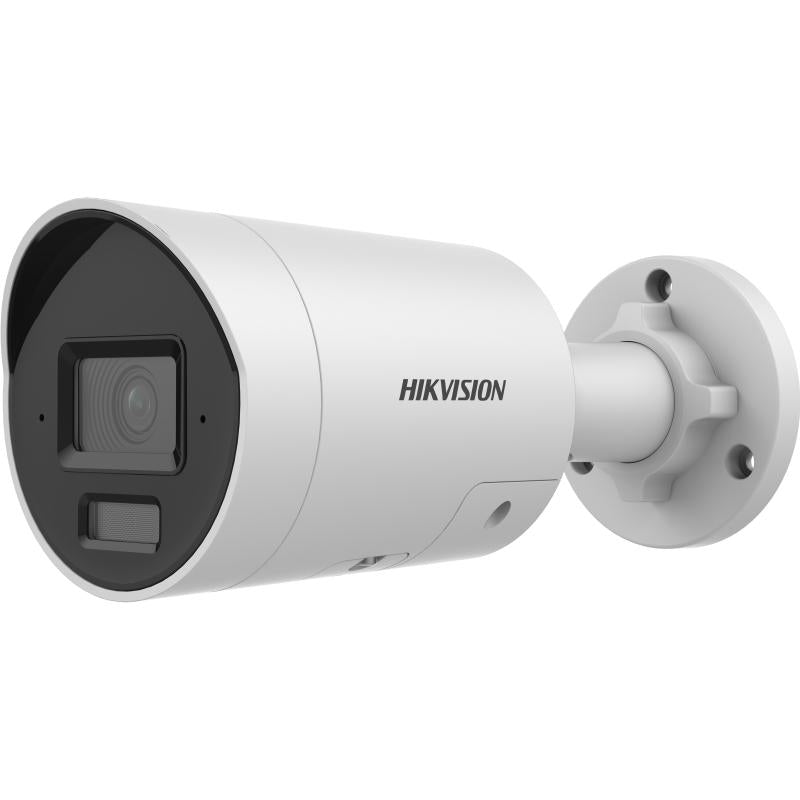

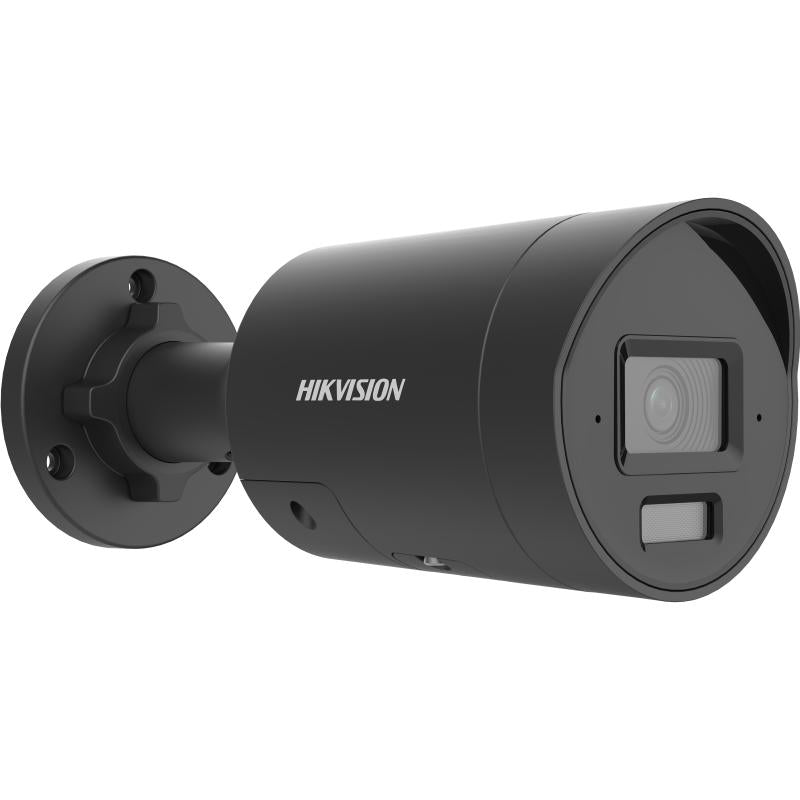

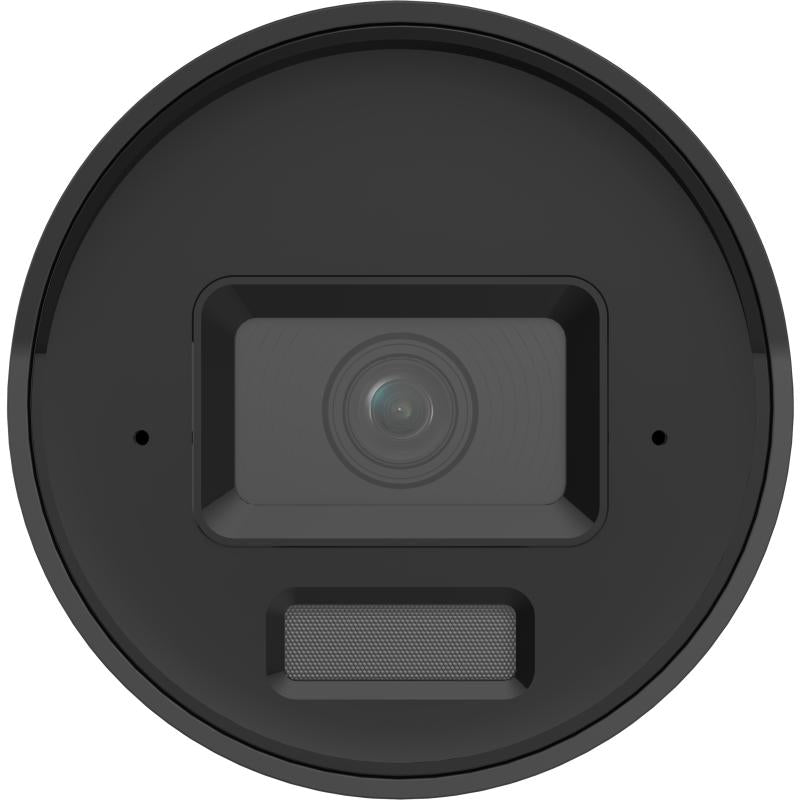

📷 Hikvision DS-2CD2083G2-LI2U – Specifications

🎥 Camera

•
  Image Sensor: 1/2.8" Progressive Scan CMOS

•
  Max Resolution: 3840 × 2160 (8 MP)

•
  Minimum Illumination:


  Color: 0.005 Lux @ F1.6


  0 Lux with light (IR/white light)



•
  Shutter Speed: 1/3 s to 1/100,000 s

•
  Day/Night: IR cut filter

•
  Angle Adjustment:


  Pan: 0°–360°


  Tilt: 0°–90°


  Rotate: 0°–360°




🔭 Lens

•
  Type: Fixed focal lens

•
  Options: 2.8 mm / 4 mm / 6 mm

•
  Aperture: F1.6

•
  Mount: M12


Field of View (FOV):

•
  2.8 mm: H 108° / V 59° / D 127°

•
  4 mm: H 88° / V 44° / D 105°

•
  6 mm: H 54° / V 29° / D 63°


🌙 Illuminator (Night Vision)

•
  Type: IR + White Light (Hybrid Light)

•
  Range: Up to 40 m

•
  IR Wavelength: 850 nm


🎞️ Video

•
  Max Frame Rate:


  20 fps @ 3840×2160


  Up to 25/30 fps at lower resolutions



•
  Compression: H.265+, H.265, H.264+, H.264


🖼️ Image Features

•
  WDR: 120 dB

•
  SNR: ≥ 52 dB

•
  Image Enhancement: BLC, HLC, 3D DNR

•
  Privacy Mask: Up to 8 areas


🔊 Audio

•
  Built-in Microphone: Dual-array mic

•
  Built-in Speaker (some variants): Yes


🌐 Network

•
  Protocols: TCP/IP, HTTP, HTTPS, FTP, RTSP, DHCP, DNS, ONVIF, etc.

•
  API: ONVIF (Profile S/G), ISAPI

•
  Max Users: 32 users (3 levels)

•
  Remote Access: iVMS-4200, Hik-Connect


💾 Storage

•
  MicroSD Card Slot: Up to 512 GB

•
  Network Storage: NAS (NFS, SMB/CIFS), ANR


🧠 Smart Features (AcuSense)

•
  Human & vehicle classification

•
  Perimeter Protection:


  Line crossing


  Intrusion detection



•
  Motion detection (target filtering)


🔌 Interface

•
  Ethernet: 1 × RJ45 (10/100 Mbps)

•
  On-board Storage Slot: Yes

•
  Reset Button: Yes


⚡ Power

•
  12 V DC ±25%

•
  PoE: IEEE 802.3at (Class 4)

•
  Max Power Consumption: ~15–18 W


🌡️ General

•
  Material: Metal

•
  Protection: IP67 (weatherproof)

•
  Operating Temp: -30°C to +60°C

•
  Dimensions: Ø74.4 × 176.3 mm

•
  Weight: ~515 g


📏 DORI Distances (Detection Range)

•
  2.8 mm: Detect up to 84 m

•
  4 mm: Detect up to 117 m

•
  6 mm: Detect up to 176 m


✔️ Summary

•
  8MP 4K resolution

•
  Smart hybrid light (IR + color night)

•
  AI human/vehicle detection

•
  Built-in dual mic

•
  IP67 outdoor design

•
  PoE support
