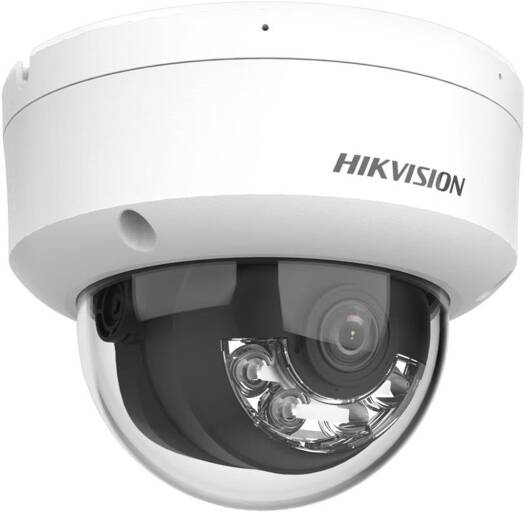

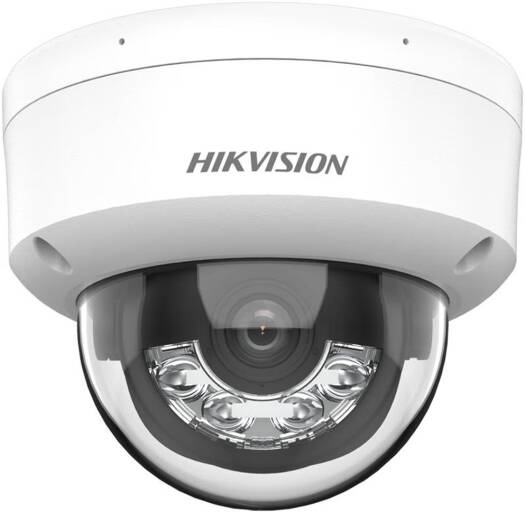

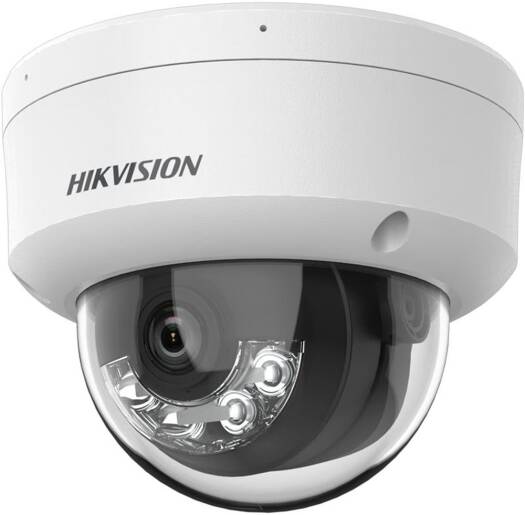

📊 Specifications — Hikvision DS-2CD2183G2-LIS2U

🎥 Camera

•
  Image Sensor: 1/2.8" Progressive Scan CMOS

•
  Max Resolution: 3840 × 2160 (8 MP)

•
  Min. Illumination:


  Color: 0.005 Lux @ F1.6


  0 Lux with IR/white light



•
  Shutter Speed: 1/3 s to 1/100,000 s

•
  Day/Night: IR-cut filter (ICR)


🔍 Lens

•
  Type: Fixed lens

•
  Focal Length: 2.8 mm / 4 mm options

•
  Aperture: F1.6

•
  Field of View:


  2.8 mm: 108° (H)


  4 mm: 88° (H)



•
  Lens Mount: M12


🌙 Illumination

•
  Light Type: IR + White Light (Smart Hybrid Light)

•
  IR Range: Up to 30 m

•
  Modes: IR / White light / Smart / Off


🎬 Video

•
  Main Stream:


  20 fps @ 3840×2160


  Up to 25/30 fps @ lower resolutions



•
  Compression: H.265 / H.265+ / H.264 / H.264+

•
  Bitrate: 32 Kbps – 16 Mbps

•
  Streams: Triple stream support


🔊 Audio

•
  Built-in: Dual-array microphone (-2U)

•
  Audio Compression:


  G.711 / G.722.1 / G.726 / MP2L2 / MP3 / AAC-LC



•
  Noise Filtering: Supported


🌐 Network

•
  Ethernet: 1 × RJ45 (10/100 Mbps)

•
  Protocols: TCP/IP, HTTP, HTTPS, FTP, RTSP, DHCP, etc.

•
  Remote Access: Web browser, Hik-Connect, NVR


🧠 Smart Features

•
  AcuSense AI (human & vehicle classification)

•
  Perimeter Protection:


  Line crossing


  Intrusion detection



•
  Motion Detection (smart filtering)

•
  Event Trigger Actions:


  Email / FTP / recording / alarm




💾 Storage

•
  Built-in Slot: MicroSD up to 512 GB


🛡️ Image Enhancement

•
  WDR: 120 dB True WDR

•
  3D DNR (noise reduction)

•
  BLC / HLC

•
  Privacy Masking


⚙️ Interface

•
  Audio: Built-in mic

•
  Alarm I/O: 1 in / 1 out (model dependent)

•
  Reset Button: Yes


🏗️ General

•
  Housing: Metal dome (vandal-resistant)

•
  Protection:


  IP67 (water/dust)


  IK10 (vandal-proof)



•
  Operating Temp: approx. -30°C to +60°C

•
  Power Supply:


  PoE (802.3af)


  12V DC




📌 Summary

This model delivers:

•
  4K ultra-clear video

•
  AI-based smart detection

•
  Hybrid night vision (color + IR)

•
  Rugged outdoor performance


👉 It’s a professional-grade IP dome camera suitable for demanding surveillance setups.
