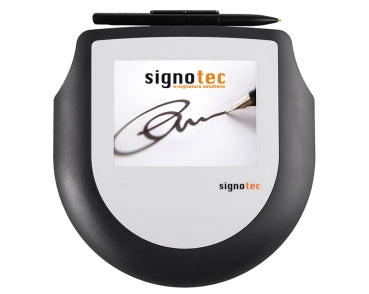

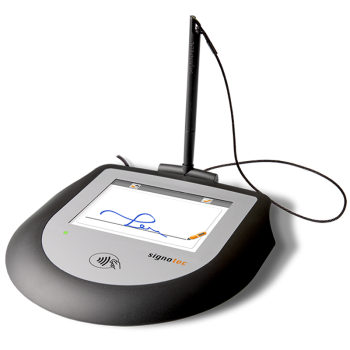

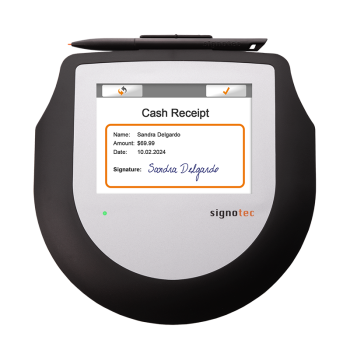

Signotec Pad Omega LCD Colour Signature Tablet

Extremely flat input device for precise capturing of signatures with a high-resolution 5" (12.5 cm) full-color display for the brilliant display of the signature in real-time as well as graphics and buttons. Thanks to the big LCD, the pad is best suited for stationary use in the office or at your point of sale (POS). The device has a USB connection cable with approx 2.0 meters length.
135.000 KD 145.000 KD

كمية

Guaranteed Safe Checkout

Easy Returs Easy Returs
Secure Payments Secure Payments
Cash On Delivery Cash On Delivery
Quality Products Quality Products
Added to cart!

Description

DISPLAY

Type 12,5 cm (5") Full-Colour LCD with LED backlight
Colours 65.536
Resolution 640 x 480 pixels
Scroll-Function Yes, graphics up to 640 x 960 pixels



SENSOR

Type RTP (Resistive-Touch-Panel)
Pen Pen with special, resilient pen tip (changeable)
Surface Special foil surface for RTP sensors
Life expectancy approx. 1 Million Signatures
Pressure Stages 1.024
Sample Rate 500 Hz, 4D Samples (x, y, z, t)
Active Signing Area 100 x 75 mm
Resolution 4.096 x 4.096 Pixel absolute ≙ 2.214 x 1.130 ppi



NEAR FIELD COMMUNICATION (NFC)

Availability Optional, integration under the hand rest
Type NXP PR533
Integration Microsoft or Linux Smart Card API
Compatibility • Reader/writer functionality compatible with ISO/IEC 14443 A&B, MIFARE™, FeliCa, and NFC Forum tag types (Jewel, MIFARE Ultralight, FeliCa, FeliCa lite, MIFARE DESFire), and supports I-class (Picopass B type modulation)
• ISO18092 passive Initiator
• Complies with German eID, ICAO, and EMVCo 2.1
• Supports PCSC part 3 release 2.01.07
• Integrated support for MIFARE Reader
• USB 2.0 host interface, CCID protocol Support
• Validated with Microsoft Windows and Linux CCID native drivers



SECURITY

Encryption AES- and RSA-Encryption
Secure Mode Real-time display of the signature without usable biometrics
PDF-Signature RSA signature creation device inside the pad
Hash-Algorithms SHA-256 und SHA-512

More information can be found below in the tab "Security features".



CONNECTION

Connection USB (approx. 2,0 meters cable length)
Power Supply USB
Network (TCP/IP) Yes, with optional signotec USB-Ethernet-Adaptor
Terminal Server / Citrix Yes, optional with hardware FTDI chip or signotec vCOM driver
Citrix Virtual Channel

Yes, optional with signotec Virtual Channel driver

Specification

RSA Features

The signotec pads have the highest security mechanisms available. This allows a complete chain of evidence in dispute. Depending on the integration, different techniques are used:

  • PDF documents can be signed inside the pad and not in the insecure environment of the PC.
  • The biometric data of the signature can be RSA-encrypted inside the pad using a public key.
  • RSA-signature of the displayed content and signature.
  • Upon delivery, each pad has a separate and unique RSA certificate for signing.
  • Storing of custom RSA-certificates inside the pad.
  • The pad can generate a RSA certificate.
  • Supported schemes are RSA PKCS # 1 v1.5 (with or without the hash OID), PKCS # 1 v2.1
  • Certificates can be certified by a Root Authority
  • Supported hash algorithms are SHA-1, SHA-256 and SHA-512.
