Product Description

Dual Band WiFi 6 Speeds up to 6000 Mbps

4804 Mbps on 5 GHz and 1148 Mbps on 2.4 GHz.

Seamless Roaming with One Unified Network

Halo units work together to automatically switch between Halos as you move around your home with a single unified WiFi name and password.

Whole Home Coverage

Blanket up to 8,500 ft² (800 m²) with high-speed WiFi, eliminating WiFi dead zones at your home.

Connect over 150 Devices

Provide fast and stable connections over 150 devices.

Easily Manage Your Home Network

Use the MERCUSYS App to quickly set up and manage your WiFi. You can also manage your kids’ online time and contents.

2.5 Gbps Multi-Gig Ports

1× 2.5 Gpbs and 2× Gigabit ports per Halo unit for lightning-fast wired connections.

Product Specifications

Hardware

• Dimensions: 5.9 × 3.7 × 3.4 in(150 × 94 × 86.7 mm))

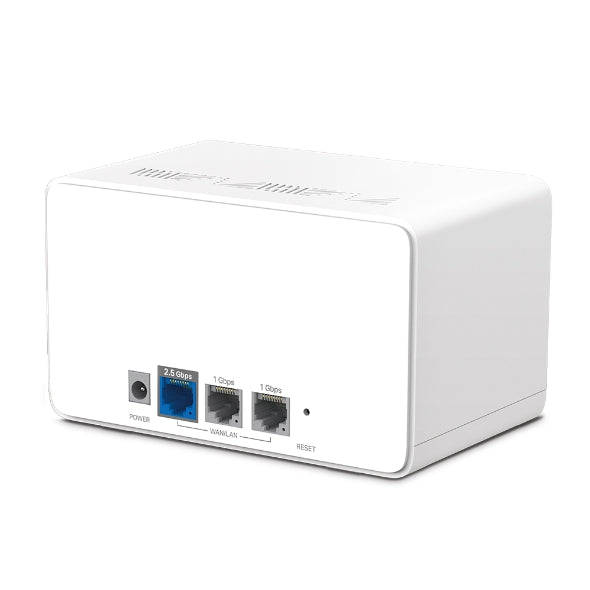

• Interfaces: 1× 2.5 Gbps Port + 2× Gigabit Ports (WAN/LAN auto-sensing)
• Button: Reset button

Software

• Operation Mode: Router, Access Point
• Quality of Service: WMM
• WAN Type: Dynamic IP/Static IP/PPPoE/L2TP/PPTP
• Management: Local Management, Remote Management, Multi-Managers
• Firewall Security: SPI Firewall
• Protocols: Supports IPv4 and IPv6
• Guest Network: 2.4 GHz Guest Network,5 GHz Guest Network
• DHCP: Server, Client

Environment

• Operating Temperature: 0°C~40°C (32°F~104°F)
• Operating Humidity: 10%~90% Non-Condensing
• Storage Humidity: 5%~90% Non-Condensing

Wireless

Wireless Standards

Wi-Fi 6

• IEEE 802.11ax/ac/n/a 5 GHz
• IEEE 802.11ax/n/b/g 2.4 GHz

WiFi Speeds

• 4804 Mbps on 5 GHz, 1148 Mbps on 2.4 GHz

Transmission Power

• 2.4 GHz < 20dBm (EIRP)
• 5 GHz < 23dBm (EIRP)

Wireless Security

• WPA-PSK/WPA2-PSK/WPA3

Mesh protocol

• 802.11k/v/r

Reception Sensitivity

2.4GHz:

• 11g 6Mbps:-96dBm
• 11g 54Mbps:-78dBm
• 11ax HE20 MCS11:-66dBm
• 11ax HE40 MCS11:-62.5dBm

5GHz:

• 11a 6Mbps:-94.5dBm
• 11a 54Mbps:-77dBm
• 11ac VHT20 MCS8:-72.5dBm
• 11ax HE80 MCS11:-59dBm
• 11ax HE160 MCS11:-55dBm
