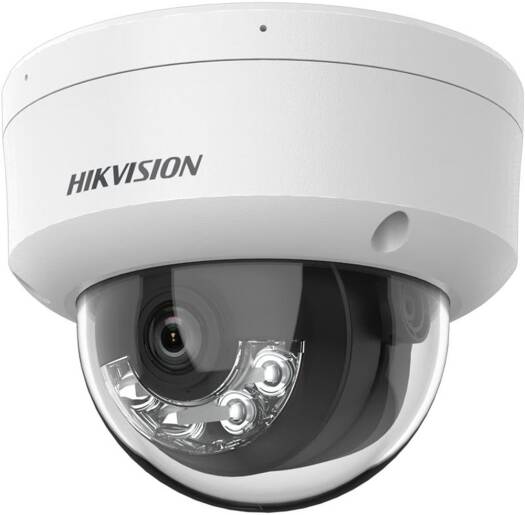

📊 Camera Specifications

🔹 Camera

•
  Image Sensor: 1/2.7" Progressive Scan CMOS

•
  Max Resolution: 3840 × 2160 (8 MP)

•
  Minimum Illumination:


  Color: 0.01 Lux @ (F2.0, AGC ON)


  B/W: 0 Lux with IR



•
  Shutter Speed: 1/3 s to 1/100,000 s

•
  Day/Night: IR cut filter

•
  Angle Adjustment:


  Pan: 0°–355°


  Tilt: 0°–75°


  Rotate: 0°–355°




🔹 Lens

•
  Lens Type: Fixed focal

•
  Focal Length Options: 2.8 mm / 4 mm

•
  Aperture: F2.0

•
  Field of View:


  2.8 mm: 113° (H), 62° (V), 134° (D)


  4 mm: 90° (H), 49° (V), 108° (D)




🔹 Illumination

•
  Supplement Light: IR + White Light

•
  Range: Up to 30 m

•
  Smart Light: Yes

•
  IR Wavelength: 850 nm


🔹 Video

•
  Main Stream:


  Up to 4K @ 12.5 fps (50 Hz) / 15 fps (60 Hz)



•
  Compression: H.265+/H.265/H.264+/H.264

•
  Bit Rate: 32 Kbps – 16 Mbps

•
  ROI: 1 region

•
  SVC: Supported


🔹 Audio

•
  Built-in Microphone: Yes

•
  Audio Type: Mono

•
  Compression: G.711, G.722.1, G.726, MP2L2, AAC-LC

•
  Noise Filtering: Supported


🔹 Image Features

•
  WDR: 120 dB

•
  SNR: ≥ 52 dB

•
  Enhancements: BLC, HLC, 3D DNR

•
  Privacy Mask: 4 zones


🔹 Network

•
  Protocols: TCP/IP, HTTP, RTSP, FTP, SMTP, DHCP, DNS, etc.

•
  Users: Up to 32 users

•
  API: ONVIF (Profile S/T), ISAPI, SDK

•
  Remote Access: Hik-Connect / iVMS-4200


🔹 Storage & Interface

•
  Ethernet: 1 × RJ45 (10/100 Mbps)

•
  Storage: microSD up to 512 GB

•
  Built-in Mic: Yes


🔹 Events & Smart Features

•
  Motion detection (human & vehicle classification)

•
  Video tampering alarm

•
  Email/FTP notification

•
  Recording trigger


🔹 Power

•
  Power Supply: 12 VDC ±25%

•
  PoE: IEEE 802.3af (Class 3)

•
  Power Consumption: Max. ~7.5 W


🔹 General

•
  Material: Metal + Plastic

•
  Dimensions: Ø121.5 × 97.6 mm

•
  Weight: ~550 g

•
  Operating Temp: -30°C to 60°C

•
  Protection: IP67 (waterproof), IK08 (vandal-resistant)
